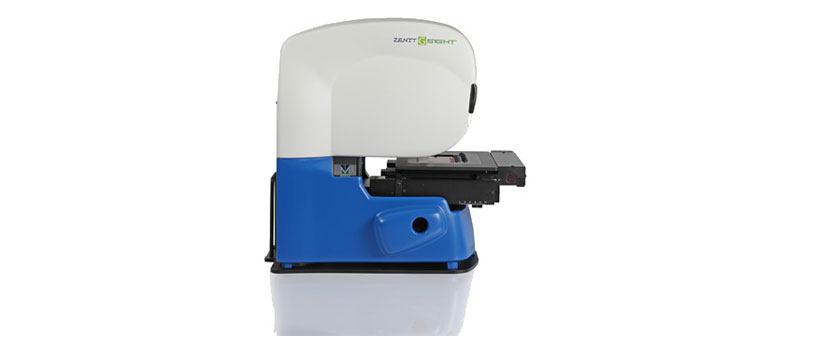

WHAT IS ZENIT G-SIGHT

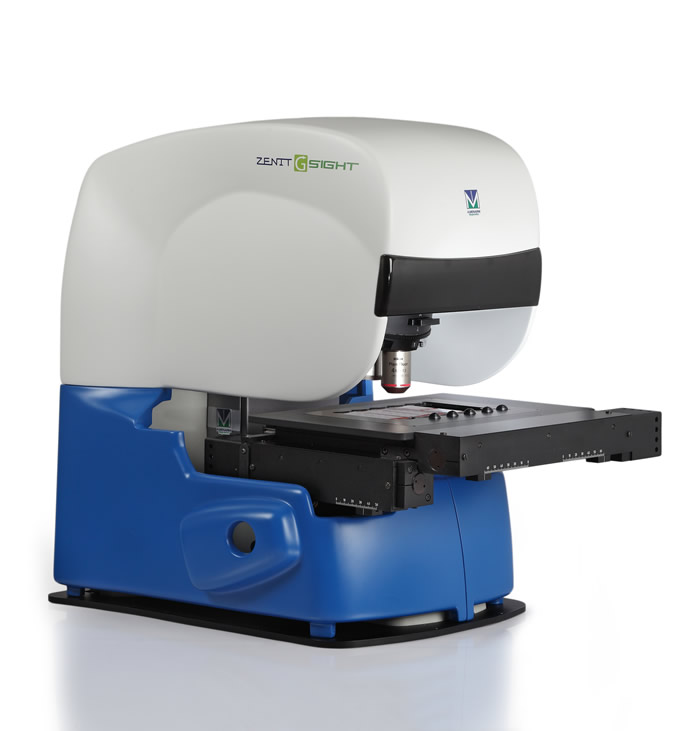

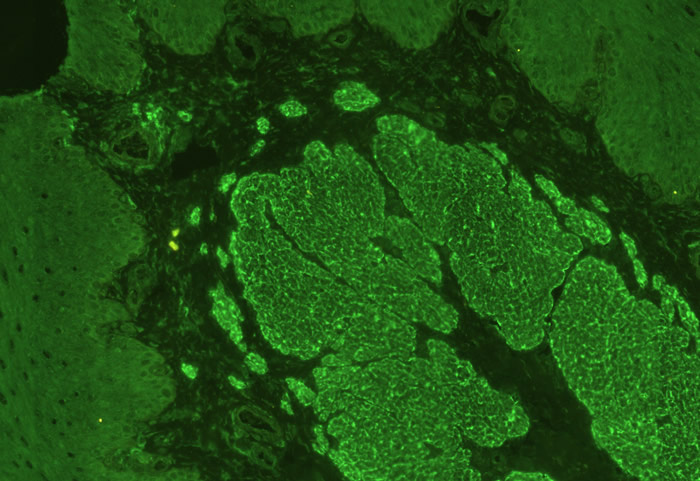

Zenit G-Sight is the novel A. Menarini Diagnostics automated system for image acquisition and interpretation of cell- or tissue-based indirect immunofluorescence (IIF) tests.
Components of this compact benchtop instrument include:
Zenit G Sight performs:
Clarification of suspected rheumatic symptoms is mainly achieved by the serological assessment/detection of disease-specific autoantibodies (e.g., anti-nuclear antibodies, ANAs).
Despite the development of enzyme-linked immunosorbent immunoassay (ELISA) and other alternative methods or technologies, screening for ANAs by IIF assays remains the gold standard method in the current diagnostic approach to systemic rheumatic disorders such as systemic lupus erythematosus (SLE), Sjögren’s syndrome (SS), progressive systemic sclerosis (PSS), dermatomyositis-polymyositis (DM/PM) or mixed connective-tissue disease (MCTD).
International guidelines recommend that ANA screening be performed on human epithelial (HEp-2) cells. Other cell substrates such as Crithidia luciliae (for the detection of autoantibodies to dsDNA) and human granulocytes (for the detection of anti-neutrophil cytoplasmic autoantibodies, ANCA) are routinely employed in cell-based IIF procedures.
Since autoantibodies produce characteristic fluorescence patterns whose analysis depends on the knowledgeability and the subjective interpretations of investigators, high intra- and interlaboratory variability represents a major problem in autoimmune diseases diagnostics.
The increase in workload and the need for standardized and reproducible evaluation of cell-based IIF assays have
guided autoimmunity laboratories on the road to automation.
The new Zenit G Sight system from A. Menarini Diagnostics was specifically designed to overcome IIF-specific issues, making it particularly suited for the automated serological diagnosis of autoimmune diseases in a routine laboratory setting.

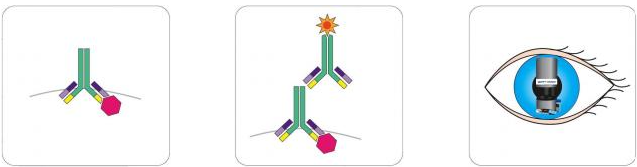

The principal steps of the method are:

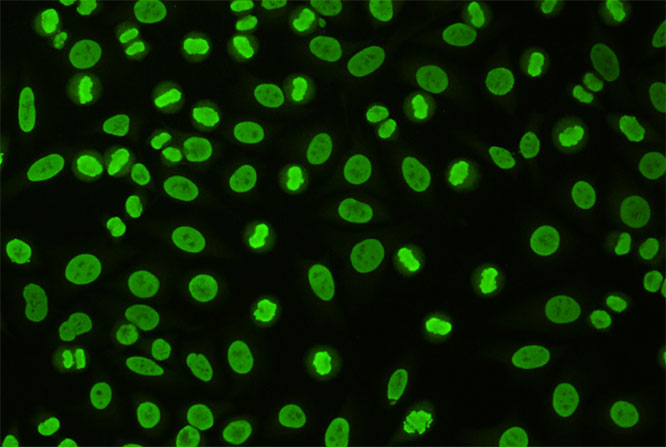

ANA detection on HEp-2 cells generates specific fluorescence patterns. The five main patterns which can be found are the following
* ANA fluorescence patterns on HEp-2 cells are shown because this is the most widely used test for visual/automated screening of rheumatic diseases
IIF assay is a low-cost, simple and rapid method for routine autoimmune screening; however, it has several disadvantages, which can be easily resolved with Zenit G Sight.

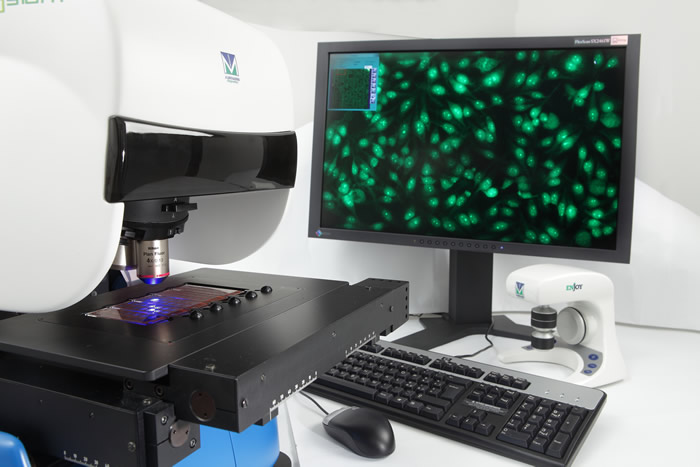

The innovative Zenit G Sight software is the central component of the system. It guarantees optimal image capture and processing, fully automated analysis of immunofluorescence signals and efficient data storage and management. In addition, Zenit G Sight software manages and controls the entire experimental workflow.

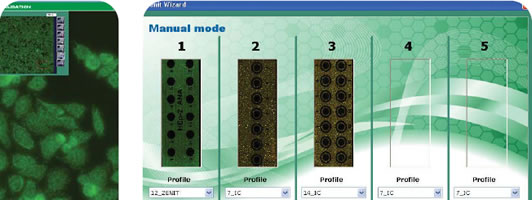

DIGITAL IMAGE ACQUISITION
Zenit G Sight software automatically reads out images and generates editable high-resolution Jpeg2000 files (30-50 MB per well). Enlarged images can subsequently be obtained by means of digital magnification.

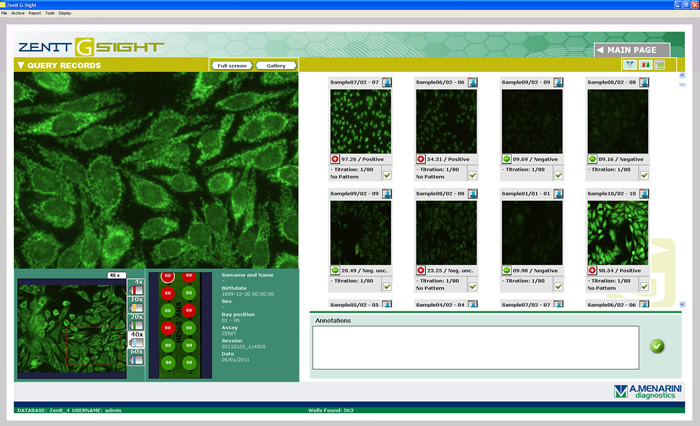

IMAGE INTERPRETATION / EVALUATION
Zenit G Sight software processes the fluorescence signals and ensures an objective reading: it automatically analyzes signal intensity and distribution in each sample.
A cut-off level was set in order to minimize the risk of “false negatives”. After the positive-negative differentiation step, a mathematical algorithm automatically assigns the observed fluorescence, for example, to one of the five basic patterns in the case of HEp-2 substrate.
The system can also give a semi-quantitative result on a positive identification criteria basis (for the HEp-2 cells, the dsDNA-mAb33 Cat. Number 33300 vial 10000 IU correlated with WHO standard Wo/80 has been used as reference material, to estimate the Absolute concentration/fluorescent emission rate).
Image storage
Once the manual validation process is completed, Zenit G Sight software proceeds with immunofluorescence image archiving. The system provides sufficient data storage capacity for about 5000 slides*.
Data retrieval and sharing

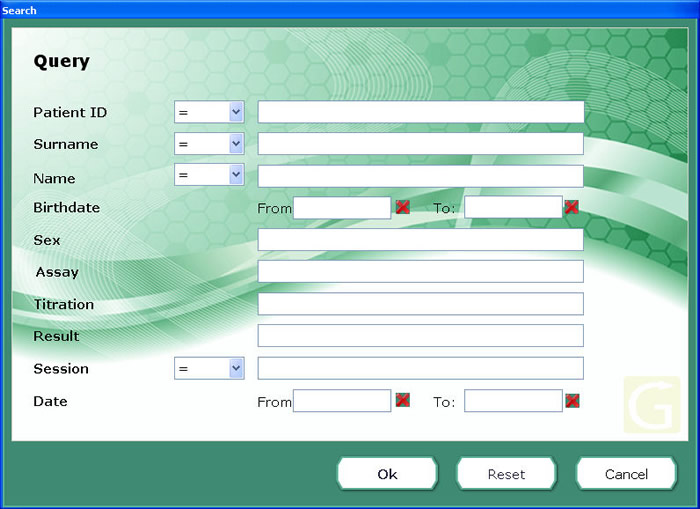

The Zenit G Sight software database search option allows easy retrieval of previous results.
Online data access and exchange are also possible.
Workflow management

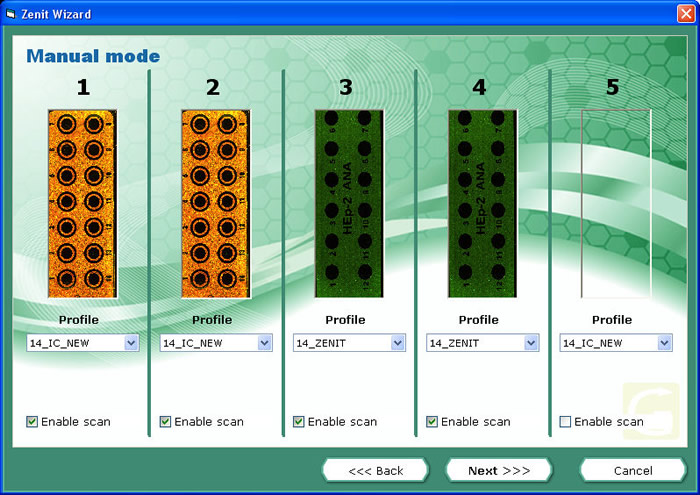

The intuitive, user-friendly interface of Zenit G Sight software accompanies the operator step by step through the entire autoantibody detection process:
The worksheet contains the number of slides to process, the test to be carried out for each slide and sample data (for each well: patient identification number, patient details, antibody title etc…).

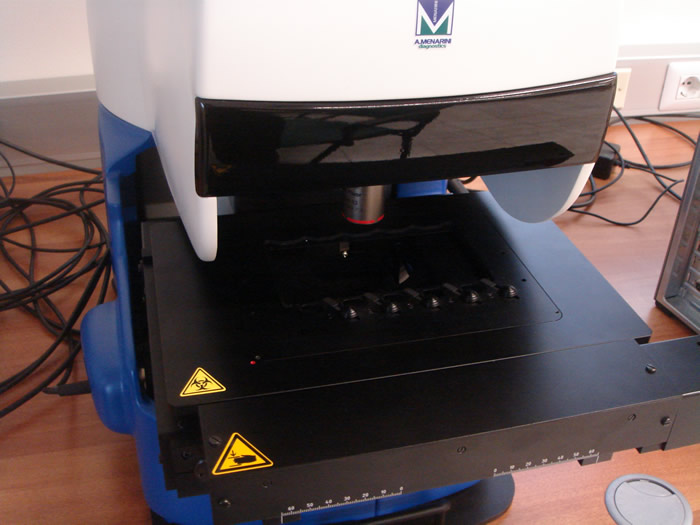

After slides are placed on the stage, the system automatically acquires images and proceeds to analyze them using a specific algorithm to discriminate between positive and negative samples and assign a pattern to each well.
The operator examine every digital image and navigate the virtual slide. Moreover the diagnosis provided by the system can be confirmed or modified based on the clinical and laboratory history of the patient.
The system allows report printing and creation of an output worksheet file containing the pattern and associated diagnosis for every well.
* depends on the HDD capacity;
** Zenit G Sight can be connected to LIS and to all Zenit series A. Menarini Diagnostics liquid handling systems for the automatic preparation of IIF slides

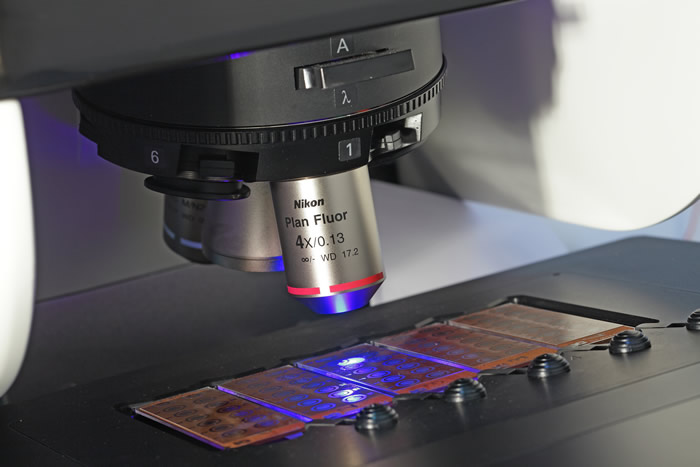

4x, 40x
Four remaining available positions for accommodating objectives (max. of 6)
15-60 minutes for a 14 wells slide
LED
Standard JPEG-2000
30-50 MB per well
0-40 °C
85% RH max. (without condensation)
from -20 to 60 °C
90% HR máx. (without condensation)
AC 110-120 V or 220-240V 50-50 Hz
Dimensions: L 40 cm x H 60 cm x W 60 cm
Weight: 40 kg
Operating system: Windows XP SP3 Professional
Processor: Intel Xeon QCore
Live memory: 4GB DDR3
Hard Disk: 4x500 GB SATA RAID10 STRIPED/MIRRORED
Dimensions: L 21 cm x H 46 cm x W 52 cm
Weight: 20 kg
Monitor: EIZO LCD
Screen size: 24”
Screen resolution: 1920 x 1200 pixels (wide screen format)
Dimensions: L 57 cm x H 46-55 cm x W 25 cm
Weight: 12 kg
Zenit G-Sight: analyzer code 42251
Zenit G-Sight: Enjoy code 42677
Zenit G-Sight: full viewer license code 42679
Zenit G-Sight: additional working station MAC code 42676
Zenit G-Sight: OBJ.20x code 42678
HEp-2 CELL SUBSTRATE SLIDES
All our substrate slides locally distributed are compatible with the A. Menarini Diagnostics Zenit series platforms and can be assessed either visually with a fluorescence microscope or automatically with the A. Menarini Diagnostics interpretation system Zenit G Sight.
CHARACTERISTICS
Our products are conveniently available in all parts of Europe through a network of local A. Menarini Diagnostics branches. Please contact your nearest branch for additional information and order placing
Homogeneous/
Peripheral
Deoxyribonucleoprotein DNA
SLE with renal involvement SLE
Nucleolar
4S-6S RNA probably U3
RNA
Scleroderma
Speckled
RNP
Sm
SS-A/SS-B
Scl-70
SLE or Mixed Connective Tissue Disease
SLE
SLE or Sjögren’s Scleroderma
Centromere
Inner and outer plates of kinetochore
CREST Syndrome

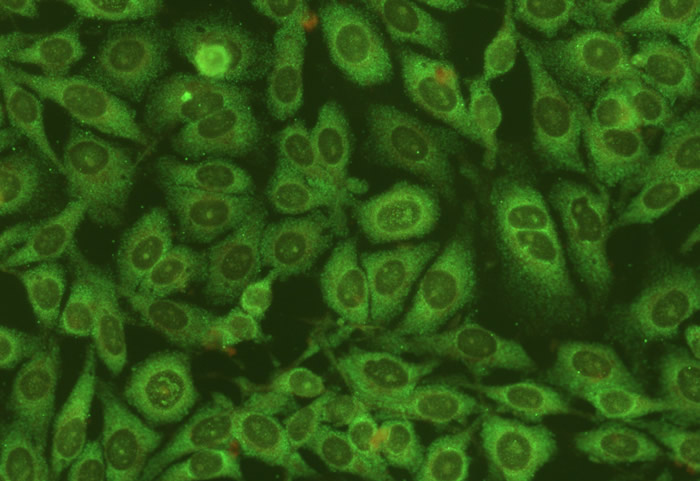

Cytoplasmic/
Mitochondrial
70 kd mitochondrial protein
primary biliary cirrhosis
Anti-nuclear antibody (ANA) detection: Zenit G Sight vs visual assessment
ANAs were determined by IIF using HEp-2 cells as a substrate. Tests were conducted blinded on 120 sera from patients with Connective Tissue Diseases or other autoimmune diseases and healthy subjects. Results were evaluated by three independent expert physician examiners and compared with evaluation by the Zenit G Sight automated interpretation system. Excellent agreement (100%) was obtained for the differentiation of positive and negative samples. Discrepancies were observed only in sera identified by Zenit G Sight system as “doubtful negative”: 8% of these were reported “positive speckled” by examiners.
For additional information, please visit the following web site: http://gsight.eu/
