Unamax One

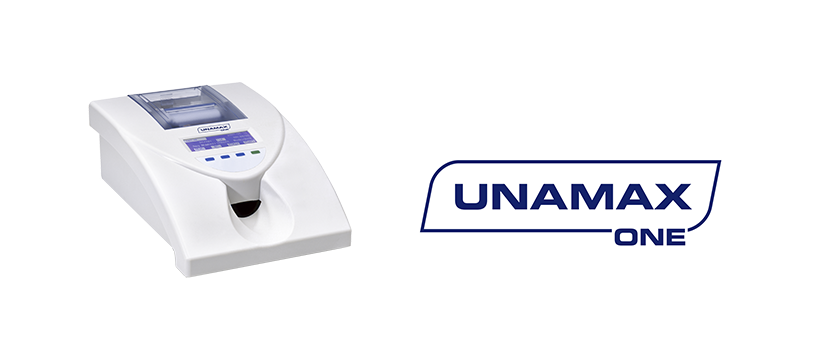

UNAMAX ONE is the new A. Menarini Diagnostics compact and portable urine chemistry analyzer that is especially designed as a point-of-care solution for the doctor’s office, emergency room and smaller laboratories. Three different types of strips can be tested on UNAMAX ONE and special parameters like ascorbic acid, creatinine, microalbumin and calcium can be determined. The analyzer can also calculate the albumin-to-creatinine ratio to identify kidney disease UNAMAX ONE is an easy and flexible solution to ensure accurate results.

Key Features
  • Ideal for point-of-care urinalysis and small laboratories
  • Up to 60 tests/hour in single measuring mode or 125 tests/hour in continuous measuring mode
  • Wide range of testing options using three different strip types
  • 3 wavelengths with cold LED light source
  • Measurement starts automatically upon strip detection
  • Easy to clean with minimal maintenance
BROCHURE AVAILABLE HERE
TECHNOLOGY

Reflectance photometry


EVALUATED
PARAMETERS

Ascorbic acid, nitrite, microalbumin, leucocytes, creatinine, ketones, urobilinogen, bilirubin, glucose, proteins, pH, blood, calcium, albumin-to-creatinine, specific gravity calculated ACR and calculated PCR


Throughput

Up to 60 tests/hour in single measuring mode – up to 125 tests/hour in continuous measuring mode


Memory

5000 patient test results


Display

LCD screen


Printer

Built-in thermal printer


Size

290 x 200 x 100 mm (L x W x H)


Weight

2.0 kg


Input

100-240V AC / 50-60 Hz


Interfaces

RS232 serial port, parallel port (external printer) and PS2 (barcode reader)


Operiting conditions

 5-30° C, RH≤80% (Recommended)


List of product codes:

52159 UNAMAX One

52240 LabUSticks 10G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD)

52241 LabUSticks 11G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC)

52242 LabUSticks 14G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC, MALB, CRE, CA)

52171 UNAMAX U11 Control

52172 UNAMAX U14 Control
