DocUReader 2 Pro
- FEATURES
- TECHNICAL DATA

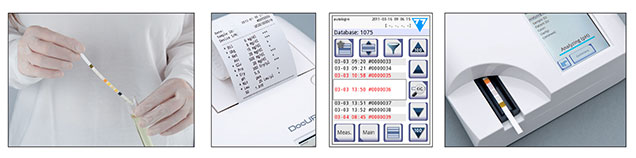

DocUReader 2 Pro is the new A.Menarini Diagnostics compact urine chemistry analyzer specifically designed to read LabStrip U11 Plus urine strips and to be the ideal point-of-care solution in physicians’ offices, hospital wards and smaller laboratories.
Key Features
- Ideal for point-of-care urinalysis, bedside testing and laboratory use
- Can perform up to 50 tests/hour in normal mode or 120 tests/hour in fast mode
- Extreme accuracy provided by patented high-precision photometric measuring technology
- Easy operation using a color touch-screen and advanced graphical interface
- Wide range of testing and user customization options
- Advanced QC and system security functions
- Easy and flexible integration and documentation with LIS2 and HL7
TECHNOLOGY
Reflectance photometry at 505, 530, 620, 660 nm wavelengths
Throughput
Up to 50 tests/hour in normal mode – up to 120 tests/hour in fast mode
Memory
3000 patient test results, 1000 QC test results
Display
3.5’’ LCD QVGA color touch-screen (240x320 resolution)
Printer
Built-in thermal printer
Size
190 x 236 x 77 mm (W x D x H)
Weight
1.5 Kg
Input
100-240V AC / 50-60 Hz – external mains adapter
Interfaces
Ethernet port, RS232 serial port, USB A, USB B, PS2 (external keyboard, barcode reader), support for USB wi-fi adapter
Communication protocols
LIS2 (ASTM+), HL7
Operating conditions
15-32° C, 20-80% relative humidity (non-condensing)

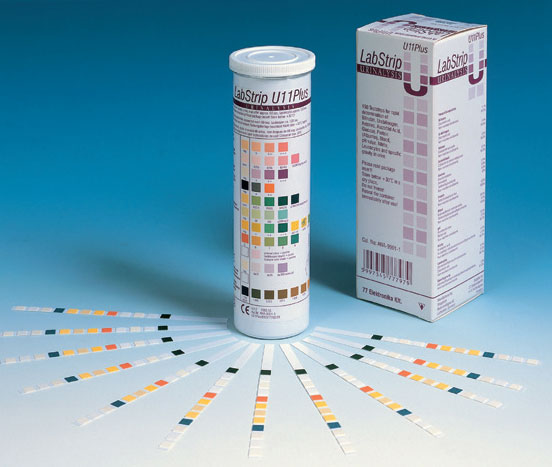

LabStrip U11 Plus
Pack size
150 tests
Shelf life
24 months
Parameters
blood, glucose, spec. gravity, bilirubin, proteins, nitrites, urobilinogen, leucocytes, ketones, pH, ascorbic acid
