LabUReader Plus 2
- FEATURES
- TECHNICAL DATA

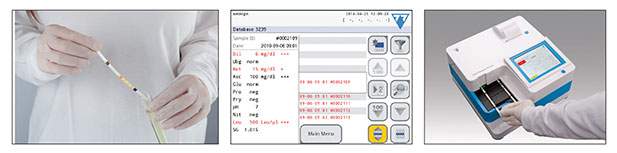

LabUReader Plus 2 is the new A.Menarini Diagnostics semi-automated urine chemistry analyzer specifically designed to read LabStrip U11 Plus urine strips and to provide maximum efficiency and accuracy to medium-sized laboratories.
Key Features
- Ideal for medium-sized laboratories
- Up to 500 tests/hour throughput
- Extreme accuracy provided by patented high-precision photometric measuring technology
- Easy operation using a color touch-screen and advanced graphical interface
- Measurement starts automatically when the strip is placed on the holder
- Advanced QC and system security functions
- Implementation of standard LIS2 and HL7 for easy hospital integration
TECHNOLOGY
Reflectance photometry at 505, 530, 620, 660 nm wavelengths
Throughput
Up to 500 tests/hour in fast mode
Memory
5000 patient test results, 1000 QC test results
Display
5.7’’ LCD VGA capacitive color touch-screen (640x480 resolution)
Printer
Built-in thermal printer
Size
300 x 300 x 170 mm (W x D x H)
Weight
6 Kg
Input
100-240V AC / 50-60 Hz
Interfaces
Ethernet port, RS232 serial port, USB A, USB B, PS2 (external keyboard, barcode reader), support for USB wi-fi adapter
Communication protocols
LIS2 (ASTM+), HL7
Operating conditions
15-32° C, 20-80% relative humidity (non-condensing)

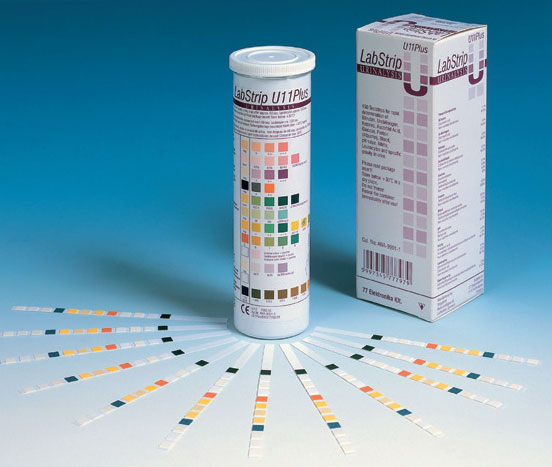

LabStrip U11 Plus
Pack size
150 tests
Shelf life
24 months
Parameters
blood, glucose, spec. gravity, bilirubin, proteins, nitrites, urobilinogen, leucocytes, ketones, pH, ascorbic acid
